NNL 690G

Power Up NNL 690G Printable Technical Data Sheet

Power Up NNL 690G MSDS Sheet

Power Up NNL 690G has been developed to greatly enhance the lubricating properties of extreme pressure gear oils.  Changing industry technology dictates improvements and demands specialization.  Power Up has met this challenge head on.

Primary Benefits of NNL 690G:

  • Reduced Friction
  • Extremely High Film Strength
  • Increased Energy Efficiency
  • Improved Lubrication
  • Reduced Dry Starts
  • Increases Component Life and Equipment Availability.
  • Reduced Operating Temperatures
  • Reduced Maintenance Costs and Downtime

Applications for NNL 690G:

Recommended wherever EP (extreme pressure) oils are used at 3-5% rates.  Including but not limited to:

  • Gear Reducers
  • Bearing Housings
  • Chain Drives
  • Standard Transmissions
  • Bull Gears and Pinions
  • Mud Pumps
  • Differentials (except limited slip)
  • Final Drives
  • Low Ash Engines
  • Cone and Jaw Crushers
  • Rotary Tables
  • Tube and Ball Mills
  • Drop Boxes

Power Up NNL 690G is specially formulated for use in all types of mobile and industrial equipment where Extreme Pressure (EP) oils are called for (API GL-3 or greater).  Specific applications include gear reducers, bearing housings, differentials (except limited slip), cone and jaw crushers, pulverizing equipment, final drives, conveyor drive gear boxes, standard transmissions, drop boxes, rotary tables, tube and ball mills, chain drives, mud pumps, bull gear and pinion sets, etc.

The primary benefit of NNL 690G is to reduce the friction caused by asperity (metal to metal) contact in the boundary lubrication regime.  It is designed for lubricated systems which call for extreme pressure (EP) oils and engines requiring low ash-content oils.

Secondary Benefits of NNL 690G:

  • Reduces ultrasonic wear noise which relates directly to component wear
  • Reduces dry start-ups
  • Lowers operating temperatures and slows oil degradation.
  • Decreases wear in cold temperature applications (conventional EP additives are very dependent upon temperature to chemically react with the wear surfaces).  The high film strength protection provided by NNL 690G is less dependent on temperature
  • Reduces fuel and/or electrical amperage consumption in gearbox or reducer applications
  • Improves filtration efficiency by reducing the generation of large wear particles
  • Non toxic

Technical Presentation on Power Up NNL 690G:

{slideboom}[slideboom id=403544]{/slideboom}

Product Application:

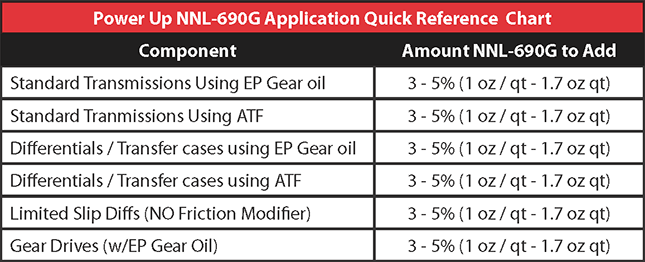

NNL 690G is intended for use in all types of mobile and industrial equipment where EP oils are used.  NNL 690G should be applied with each oil change at 5% of the gearbox capacity.  With gear oils heavier than ISO 320, NNL 690G should be used at 3-5%.  In internal combustion engine crankcases using low ash or ashless oils, NNL 690G should be used at 3% of the oil volume with each change.  It is also suitable for use in automatic transmissions at an application rate of 1%, in power shift transmissions at 3%, and in circulating systems at 3% or 5%, depending on the severity of service.  NNL 690G is compatible with mineral based oils and with synthetic oils based on polyalphaolefins and diesters.  At recommended application rates, it will not effect typical gear or engine oil viscosity ratings or seal materials.

Available in the following convenient sizes:

150 ml (5 oz.) Bottle
1 Liter (35 oz.) Bottle
1 Gallon (128 oz.) Jug
20 Liter (5.5 Gallon / 700 oz.) Pail
205 Liter (56.05 Gallon / 7,175 oz.) Drum

“When we did our inspections on our mudpumps prior to using your product we would always find a lot of metal flake on the magnets that we placed in the bottom of our oil reservoirs. Since adding NNL 690G to our gear oil,we have dramatically reduced the amount of these metal particles found thus increasing the life of our mudpumps. The increase in the life of our mudpumps along with an effective oil analysis program to monitor the oil condition changes have saved us thousands of dollars in wear related costs.“
Pat Burns, General Manager, Energy Drilling - Natchez, Mississippi

“I have been using Power Up and Kleenoil products for a number of years and have seen benefits in fuel savings and longer oil intervals. Just recently, more benefits have come my way.  I went to have my truck DOT inspected for renewal of certification and the inspector discovered that my transmission cooling line had rubbed through and there was gear lube all over the underside of my truck. Upon removing the drain plug only a small amount of gear lube flowed out. He contacted me and told me that with the small amount of fluid left in the transmission he felt that the transmission should be replaced. I have no idea how many miles I ran with a leaky hose. With that information I then remembered that I had NNL 690G in my gear oil and that product clings to metal surfaces. So I told the inspector to wait and I’ll get some NNL 690G to add to the gear oil and to just put a new cooling line on and I’ll be okay. Now the technician was surprised and doubtful about my plan (he said I wouldn’t get 100 miles before I’d be back for replacement) but that’s been over 50,000 miles ago and I’m still running just fine and the transmission runs quiet and cool.

The bottom line is that the NNL 690G saved me a transmission and down time. Now, that makes me money and keeps my wheels turning. I recommend Power Up Lubricants and Kleenoil filtration to everyone as a reliable profit maker for their equipment.  The Kleenoil bypass filtration let’s me change oil at 100,000 or more and the oil samples show low wear and cleaner than new oil. My truck has over 1.5 million miles on it and the 60 series Detroit Diesel motor is still running great..“
Paul Kavitz, American Trucking, Owatonna, Minnesota
